C e n t D e u x - Compact Sampler Unit

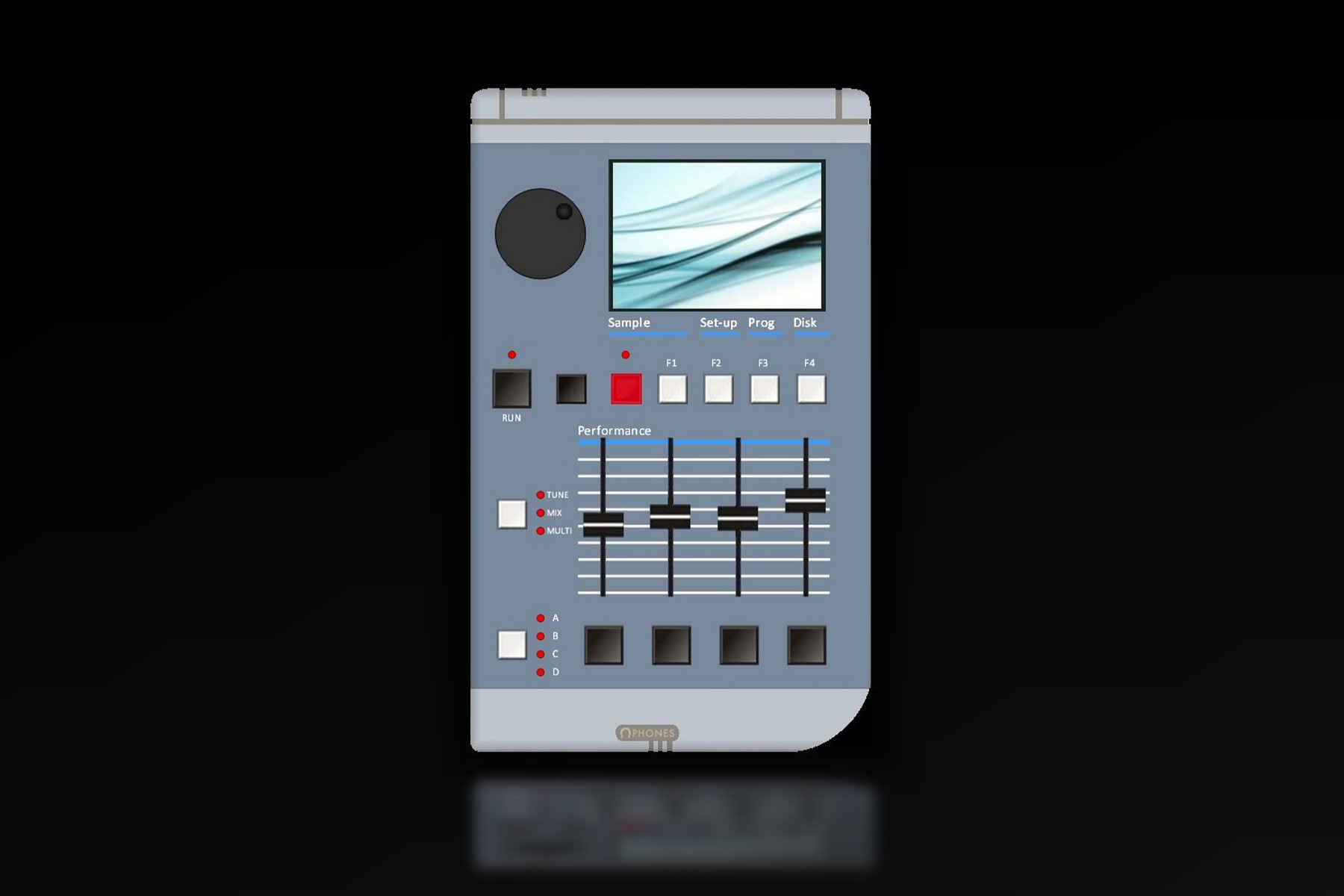

DIY Compact sampler in an GameBoy like format.
___ Proof of concept ___
- 1x : Raspberry pi zero Wh
- 1x : 40-pin GPIO header female
- 1x : MCP3008
- 1x : 74HC14
- 1x : 6N138
- 1x : Encoder EC11
- 1x : LCD 1.8" (st7735)
- 1x : Tact switch 90°
- 4x : 3.5 Female Jack Connector 5-Pin

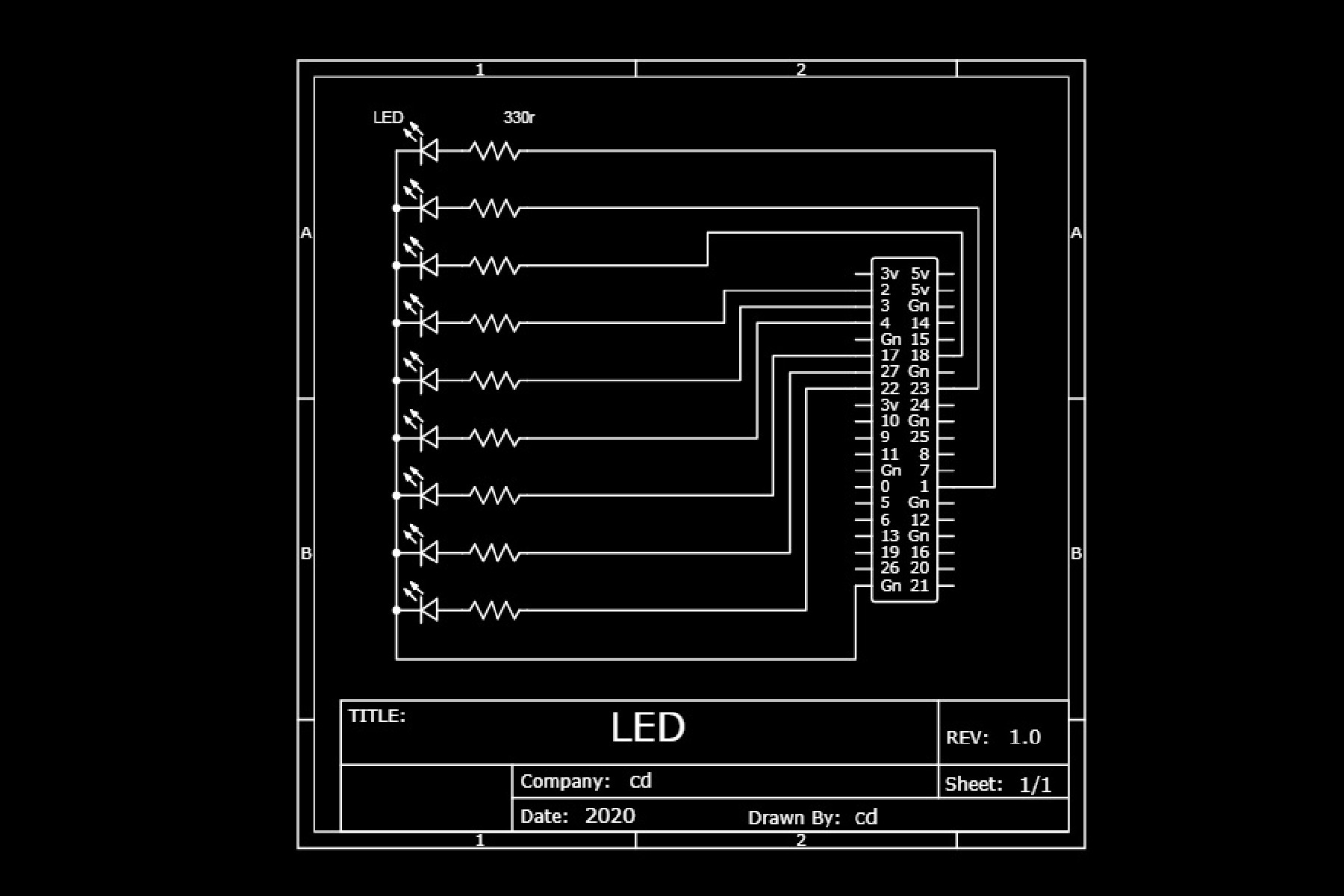

- 9x : Led
- 13x : Tact switch 2-pin (8*8)
- 4x : Fader 10k 45mm
- 9x : Resistor 330r
- 3x : Resistor 220r
- 1x : Resistor 1k
- 6x : Capacitor 100nf
- 16 : Diode 1n4148
- 1x : Hub OTG Micro USB
- 1x : mini Sound card USB
- 1x : Lithium battery expansion card
- 1x : Case 3d printing or GB DMG

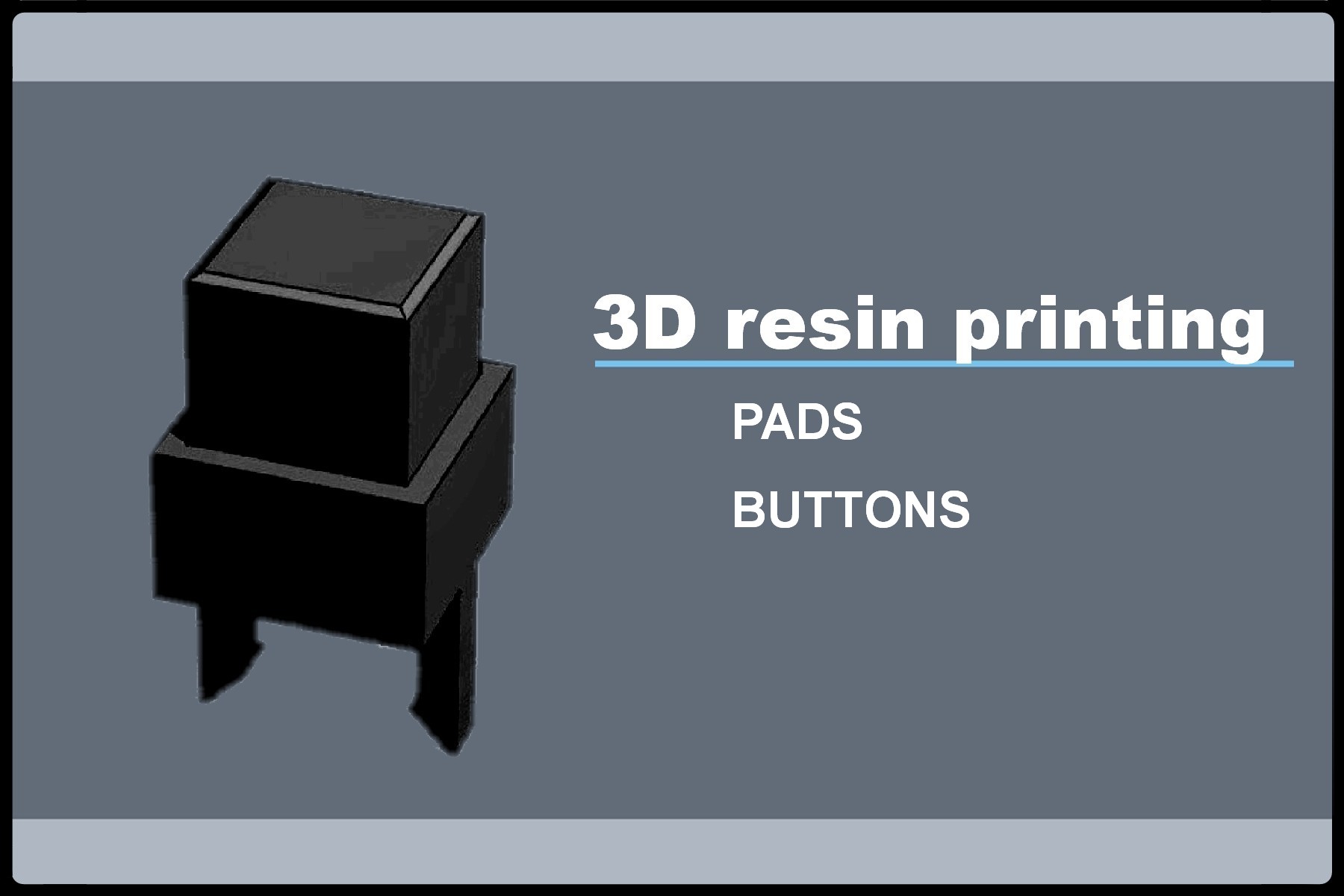

- 5x : Pad 3d printing
- 8x : Button 3d printing
- 4x : Cap fader
- 1x : Cap encoder
+ various DIY tools and accessories
|
